EIGEMEquipment-E84 delivers a comprehensive SECS/GEM, GEM300, and E84 SDK solution designed for OEMs. It ensures industry-standard compliance while simplifying protocol integration, enabling seamless communication, improved efficiency, and faster time-to-market with expert integration support.
In 300mm and 200mm semiconductor manufacturing, reliable communication between production equipment and Automated Material Handling Systems (AMHS) is critical. EIGEMEquipment-E84 by eInnoSys is a field-proven platform built to manage SEMI E84 complexities with advanced fab automation capabilities.
Whether developing new equipment or upgrading legacy tools for OHT compatibility, this E84 SDK ensures safe, efficient, and standards-compliant material transfers.
Implements the complete Enhanced Carrier Handoff Parallel I/O interface, covering all signal definitions (VALID, CS_0, TR_REQ, etc.) and timing diagrams. The E84 SDK ensures standards-compliant material handling communication.
Saves months of your development cycle. Our E84 SDK & integration services allow for rapid integration into existing equipment software without rebuilding the communication stack from scratch.
Our patented technology enables older tools to communicate with modern AMHS/OHT systems, extending the ROI of your existing fleet by years using proven fab automation software.
A versatile E84 SDK supporting Windows, Linux, and Android, with native APIs for C#.NET, C++, and Java.
Built-in logic for advanced error detection and recovery protocols, minimizing the risk of wafer scrap during handoff failures.
While competitors offer standard interfaces, EIGEMEquipment-E84 distinguishes itself through Efficiency and Versatility:
Ultra-Lightweight: Optimized for minimal CPU and memory consumption, leaving maximum headroom for your tool’s primary control software. The efficient fab automation software design ensures reliable E84 communication.
Hardware + Software Synergy: Unlike “software-only” vendors, we provide the complete package, including the PIO hardware interfaces (sensors and I/O boxes) and the diagnostic software to monitor them in real-time. This integrated E84 SDK & integration services for OEMs approach eliminates compatibility issues.

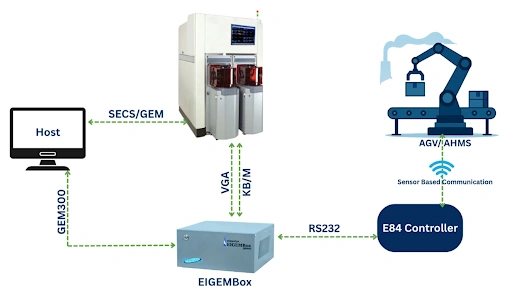

Unified Automation: Seamlessly pairs with our EIGEM300 and EIGEMBox suites to provide a full GEM300 (E87, E40, E94) and SECS/GEM compliance layer using unified fab automation software.
Ensures reliable SECS/GEM, GEM300, and E84 standard implementation, reducing compliance risk during validation and deployment.
Enables smooth coordination between equipment, AMHS, and factory systems through standardized communication.
Flexible design allows adaptation to OEM requirements without affecting core protocol behavior.
Accelerates deployment by minimizing protocol development and validation effort.
Scalable architecture supports evolving standards and long-term equipment lifecycle needs.
Provides experienced guidance and ongoing assistance for stable, production-ready integration.
Comprehensive SECS/GEM Compliance
Provides full implementation of SECS/GEM standards for reliable communication between equipment and host systems. This fab automation software ensures standardized behavior across monitoring, control, and reporting functions.
GEM300 Compatibility
Supports advanced GEM300 features required for 300mm fabs. The E84 SDK implementation aligns with GEM300 standards to meet automation and material handling requirements in modern manufacturing environments.
E84 Handshake Implementation
Implements the E84 handshake protocol to support precise and automated material transfer. This E84 SDK & integration services capability is essential for reliable communication between equipment and material handling systems.
Modular SDK
Offers a flexible, modular E84 SDK that supports easy integration, customization, and expansion. OEMs can adapt the SDK to evolving requirements without reworking the full integration.
Real-Time Data Monitoring
Includes real-time data monitoring and reporting capabilities to support analysis and operational visibility. This fab automation software enables timely decision-making based on equipment and process data.
Scalable Architecture
Designed to grow with business needs, supporting additional equipment, features, and protocols over time. The scalable E84 SDK structure minimizes disruption as systems expand.
Security and Reliability
Built with a focus on secure and reliable communication across all interfaces. This ensures stable operation in production environments where data integrity is critical.
Dedicated Integration Support
Provides ongoing support for integration, troubleshooting, and optimization through expert E84 SDK & integration services for OEMs. Continuous assistance helps maintain smooth operation and long-term performance of the deployed solution.
SEMI E84-0823 (Latest Technical Revision)
High-speed Parallel I/O; TCP/IP for host-side monitoring
Supports industry-standard sensors (Hokuyo, etc.) and DB25 connector interfaces
Real-time signal transition logger and state-machine visualizer for rapid debugging on the Fab floor
C#.NET, C++, Java
Windows, Linux, Android
Ensure seamless equipment communication and reliable carrier handling with our E84-compliant solution, built for high-performance semiconductor automation.
Achieved 300% faster data transfer with a fast, flexible, and reliable SECS/GEM, GEM300, and E84 integration—delivering improved performance,…
Enabled on-time delivery at a leading OSAT by achieving full SECS/GEM compliance, doubling productivity, eliminating recipe errors, and…
By enabling real-time monitoring and predictive maintenance, we reduced scrap, avoided costly upgrades, and transformed operations from reactive…
Connect with our experts to discuss your OEM and FAB/ATP requirements and explore the right solution for your operations.
GEM300 SDK & Integration Services is a plug-and-play, SEMI standards compliant, SECS/GEM…
EIGEMEquipment is a SEMI standards-compliant SECS/GEM SDK and integration solution designed to…
EIGEMEquipment-E84 is a complete E84 SDK & integration services platform implementing the SEMI E84 standard for automated material handling. OEMs building new semiconductor equipment and fab managers retrofitting legacy tools for AMHS/OHT benefit — it removes months of custom protocol work and ensures SEMI compliance and reliable material transfers in 300mm and 200mm fabs.
Yes. Patented technology lets older tools communicate with modern AMHS/OHT systems via flexible E84 SDK & integration services. Options include software-only integration or full hardware-software packages (PIO interfaces, sensors, I/O boxes), extending equipment ROI without replacement.
Unlike software-only vendors, EIGEMEquipment-E84 delivers hardware + software synergy: PIO hardware interfaces, sensors, I/O boxes, and diagnostic software for real-time monitoring. The ultra-lightweight fab automation software is optimized for minimal CPU and memory use and integrates with EIGEM300 and EIGEMBox for unified GEM300 and SECS/GEM compliance.
The E84 SDK & integration services can reduce integration time by up to 70% versus in-house development, saving months by providing plug-and-play integration and accelerating factory acceptance testing and production readiness.
EIGEMEquipment-E84 supports Windows, Linux, and Android and provides native APIs for C#.NET, C++, and Java — enabling consistent, multi-platform/multi-language integration across diverse equipment architectures.
The package includes PIO (Parallel I/O) hardware with DB25 connector interfaces, industry-standard sensors (Hokuyo, etc.) for carrier detection, I/O boxes for signal management, and diagnostic software for real-time monitoring.
EIGEMEquipment-E84 provides comprehensive integration and production support: a real-time signal transition logger, state-machine visualizer for rapid fab-floor debugging, dedicated integration support, and ongoing expert guidance for stable, production-ready operation and long-term performance.
